Explorer HD System

A True Digital Magnifying Video Scope

Explorer HD System | Explorer HD Lite

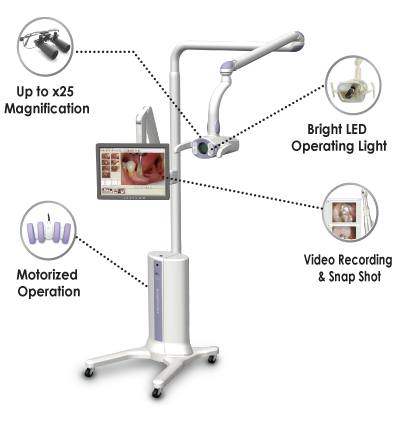

Explorer HD System

The Explorer HD is a true digital magnifying video camera system that provides crisp, clear images magnified up to 25 times so that dentists can see better for quality patient care. With our Explorer HD, dentists can record a live streaming video or take snapshots during a procedure with just a click of a footpedal. Its built-in motorized lens system also provides user-friendly operation that can zoom, focus, and adjust brightness from a footpedal or handle switch on the camera handle. Its bright white high powered LED operating light provides superior illumination with three step dimmer control.

Features

  • One Click Live Streaming VideoRecording & Snap Shots
  • High Magnification up to 25 Times with Larger Field of View
  • Bright White LED Operating Light with 3 Step Dimmer Control
  • User-Friendly Operation with Motorized Lens System
  • Great Teaching & Learning Tool
  • Better Ergonomic Solution
Explorer HD System

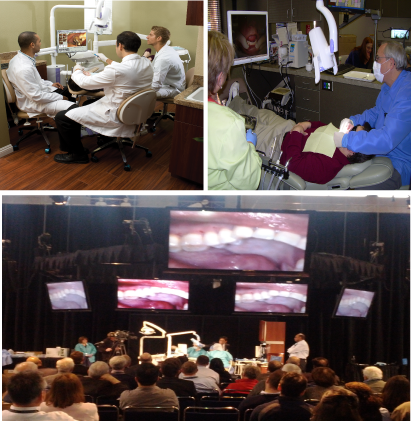

Teaching & Learning Tool

Explorer Teaching & Learning Tool

Explorer HD Specification

Features Explorer HD
CCD Type Digital 1/3" CMOS
Output USB 3.0
Capture Card N/A
Live Image Resolution 1328 x 1048
Refresh Rate 30 pictures per second
Optical Zoom * Up to 25x
Digital Zoom Yes
Camera Preference Customized Setting Window
Simultaneous Voice Recording Yes
Recording Format (Digital) AVI
Image Import Module Yes

Different Configurations Available

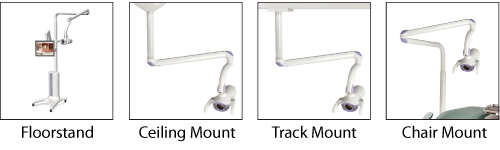

Explorer Configurations

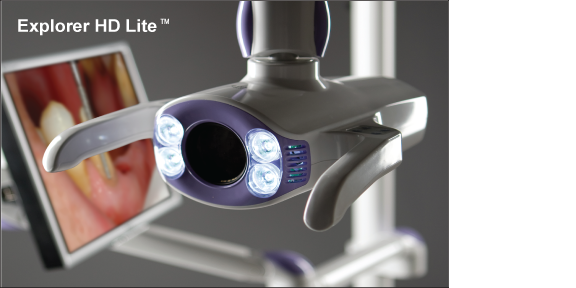

Explorer HD Lite

Complete “All-in-One” Operatory Lighting & Video Camera System

The Explorer HD Lite is a high powered bright white LED operating light system that is equipped with a true digital video camera, that brings the smallest details into brilliant full screen up to 20 times of magnification. With the Explorer HD Lite, a dentist can enjoy the powerful and efficient operating light system and record a live streaming video or take snapshots during a procedure with a click of a footpedal or handle switch on the camera handle. Packaged with its signature software, all the video clips and snapshots stored in each patient’s chart can be simply replayed and reviewed during the case presentation.

Features

Explorer HD Lite

Explorer HD Lite System will:

  • Replace your HD Intraoral Camera
  • Replace your Halogen or LED Operating Light

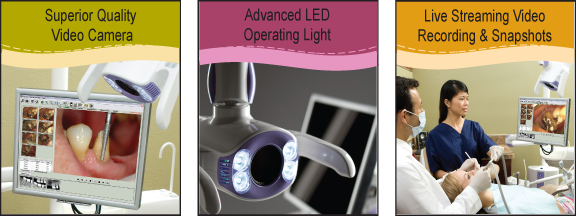

Explorer HD Lite Features

Explorer HD Lite Specification

Features Explorer HD
Camera Type Digital 1/3" Color CCD
Output USB 2.0 / GigE
Magnification Zoom over 20x
Live Image Resolution 1280 x 720
Digital Zoom Yes
Light LED / 30,000 Lux
Software Signature Imaging Software
Recording Format (Digital) AVI & MPEG-4 Codec
Image Import Module Yes

Different Configurations Available

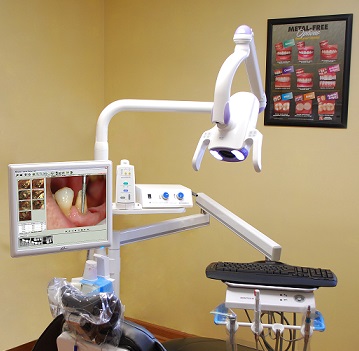

Explorer HD Lite Chair Mount Explorer HD Lite Ceiling Mount

Dealership Available

We are looking for partners to distribute our Explorer with experience in selling high-tech equipment, a strong customer base, and that has the capability to increase sales of Explorer. Potential distributors seeking to become our authorized distributor may contact us at fy@denttio.com.
